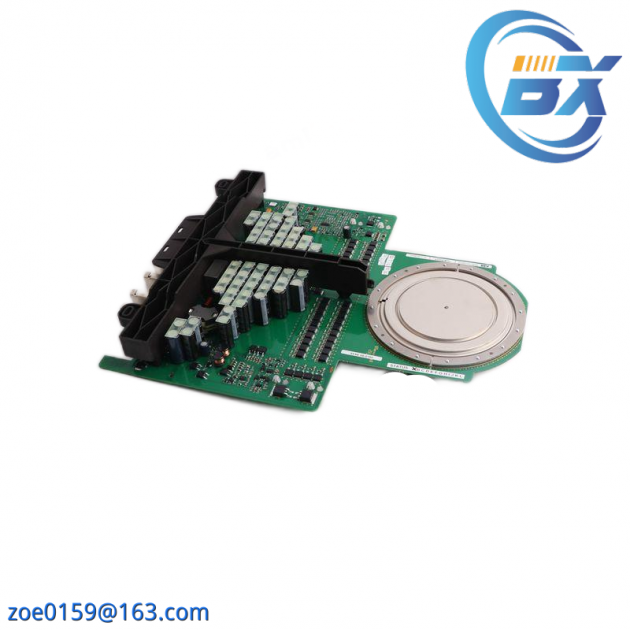

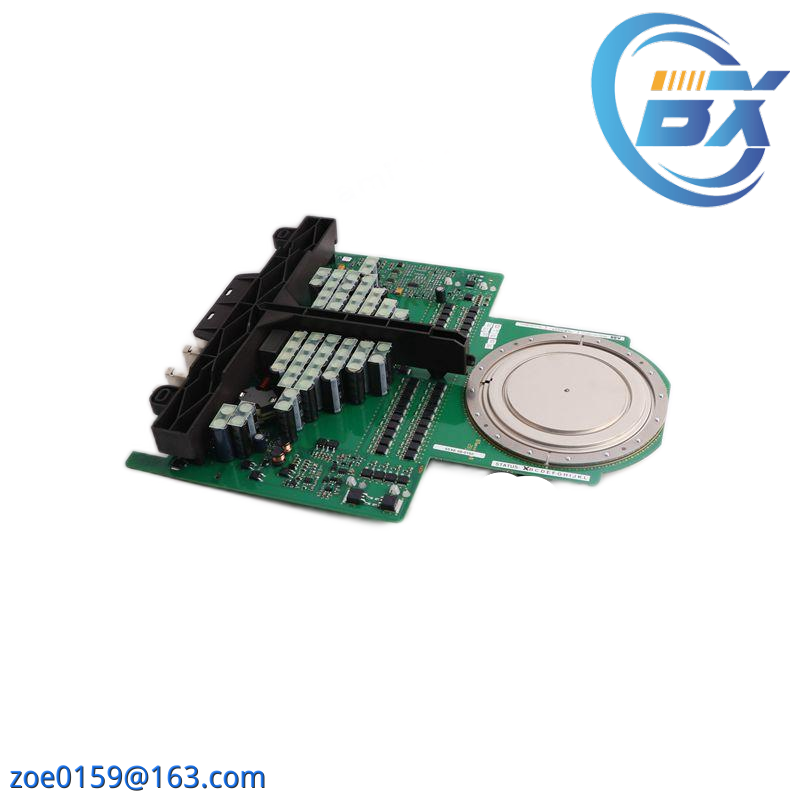

ABB 3BHB018160R0001 | 5SHY4045L0001 | IGCT MODULE

Manufacturer:ABB

Model Number:3BHB018160R0001, 5SHY4045L0001

Module Type:IGCT Module

Application Voltage:Up to 1600V DC

Maximum Current:4500A

Operating Frequency:50Hz to 60Hz

Insulation Resistance:≥10MΩ

Ambient Temperature Range:-40°C to +70°C

Environmental Protection Rating:IP54

Dimensions (WxHxD):200mm x 350mm x 400mm

Weight:25kg

Cooling System:Thermal Conduction Cooling

    The ABB 3BHB018160R0001 5SHY4045L0001 IGCT module is engineered for unparalleled performance and reliability in industrial control applications. Its robust design ensures seamless operation in harsh environmental conditions, making it an ideal choice for manufacturing plants, renewable energy systems, and heavy machinery operations.

    Equipped with advanced thermal management systems, this module efficiently dissipates heat through natural convection cooling, preventing overheating and ensuring continuous, reliable power delivery. The wide input voltage range accommodates various power sources, providing flexibility and adaptability across diverse industrial settings.

    With its exceptional efficiency, the module optimizes energy usage, reducing operational costs and carbon footprint significantly. Its compact size and lightweight design facilitate easy integration into existing control systems without compromising on performance.

    The ABB IGCT module supports a variety of control protocols and interfaces, including CANbus, Modbus, and Ethernet, enabling seamless communication with other components in complex industrial networks. Its modular architecture allows for easy maintenance and upgrades, minimizing downtime and maximizing system uptime.

    Designed with safety in mind, the module incorporates multiple protective measures to safeguard against overvoltage, overcurrent, and short-circuit scenarios. This ensures the safety of personnel and equipment, contributing to a safer working environment.
