Number of Channels:4
Output Type:Digital
Output Voltage Range:5 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA per channel
Current Rating:Continuous: 0.25 A per channel, 8 A per module
Isolation:Communication circuits: 500 VDC, Backplane: 1500 VAC
Temperature Range:0 – 60 DEG C
Environmental Conditions:5 – 95% RH without condensation

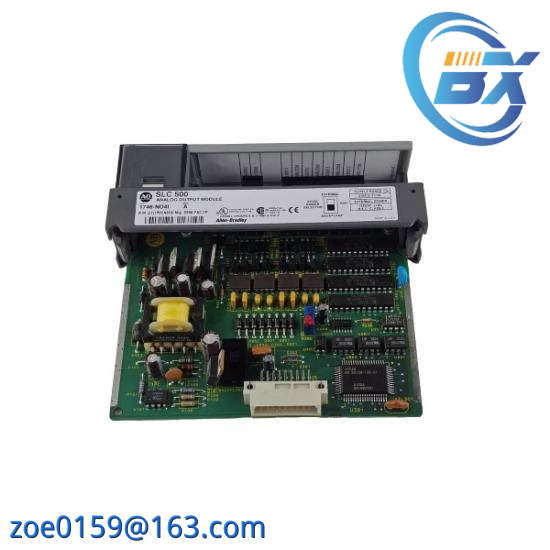

The Allen-Bradley 1746-NO4I Output Module is a robust and reliable solution for controlling up to four output devices in industrial settings. This module is specifically designed for compatibility with SLC 500 series controllers, ensuring seamless integration into existing systems.
Each channel supports a non-latching operation, allowing for precise control over devices requiring on-off functionality. With a maximum current rating of 0.4 A per channel and a relay rating of 3A @ 24 Vdc, it can handle a variety of loads efficiently.
The 1746-NO4I operates within a wide temperature range (-5 to 60°C), making it suitable for diverse industrial environments. It’s also designed for easy installation and maintenance, with a compact size and lightweight construction.
Equipped with an RS-232 communication interface, this module allows for straightforward connection to other devices or systems, facilitating data exchange and remote monitoring. Its power consumption is kept to a minimum, ensuring energy efficiency.
Ideal for applications in machine control, process automation, and more, the Allen-Bradley 1746-NO4I Output Module delivers consistent performance and reliability, enhancing operational efficiency and productivity in industrial operations.
