Operating Voltage:24 VDC
Specified Operational Voltage Range:15 to 30 VDC
Absolute Maximum Output Voltage:33 VDC
Absolute Maximum Reverse Input Voltage:- 0.6 VDC
Output Current:<4.8 A, self-limiting | 3.0 A, typical
Degraded Mode Output Current:> 0.7 A, self-limiting | 1.5 A, typical
Field Alarms:[“Loss of field power”,”Output point shorted”]
On/Off Loop-back Thresholds:0–5 VDC = Off region | 6–14 VDC = transition region | 15–30 VDC = On region
Leakage to Load:> 0.7 A, self-limiting | 1.5 A, typical

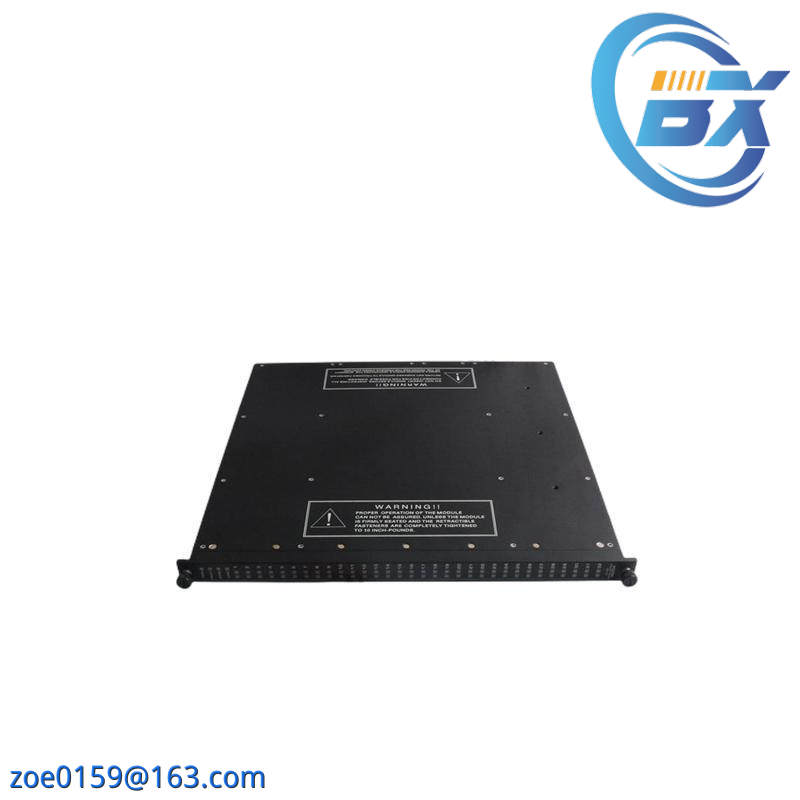

The TRICONEX DO 3401 Output Module is engineered for robust performance in a wide variety of industrial settings, ensuring dependable operation under harsh conditions.
Featuring an advanced digital output design, this module supports a broad operational voltage range, allowing for flexibility in integration across different systems.
With a maximum output voltage of 33 VDC and a reverse input voltage limit of -0.6 VDC, the module ensures safe and efficient power handling.
The self-limiting current of up to 4.8 A and typical current of 3.0 A at the degraded mode provide a balance between power delivery and system safety.
Equipped with comprehensive field alarms, the TRICONEX DO 3401 Output Module guarantees real-time monitoring and quick response to potential issues, enhancing overall system reliability.
